Nanolux SN630 LED fixture

Description

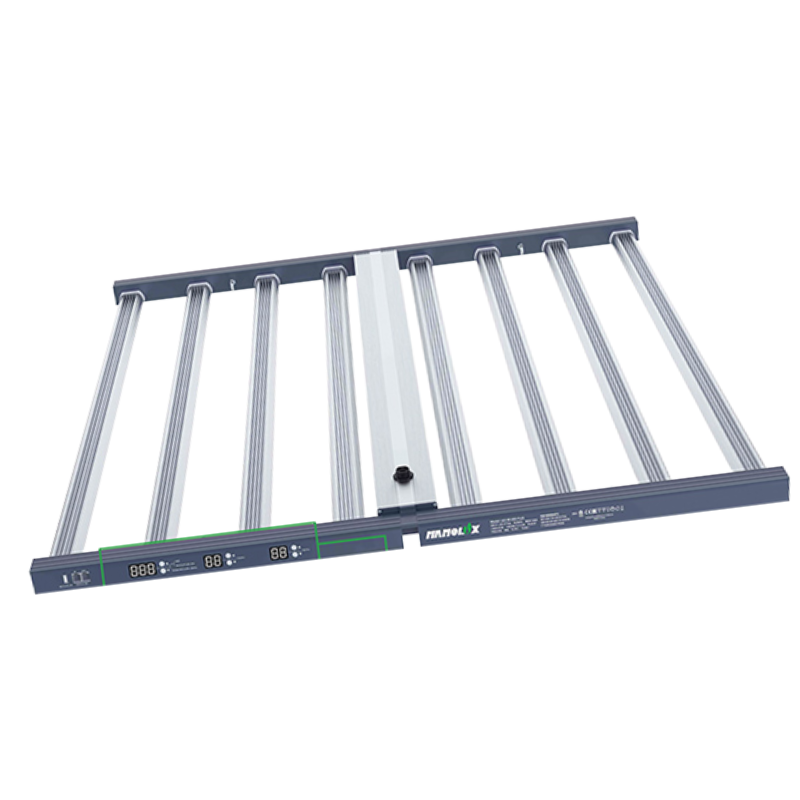

Nanolux SN630 LED Grow Light, Full Spectrum Fixture with Programmable UV & IR Control

The Nanolux SN630 LED grow light delivers high-efficiency, full-spectrum lighting designed for serious indoor cultivators. Packed with innovative technology and flexibility, this fixture includes individually controlled UV and IR spectrums, enabling growers to enhance plant aroma, flavor, and potency through customizable spectral exposure. UV and IR cycles can be set via digital front-panel timers for 1 to 12 hours, allowing targeted spectral application during specific stages of plant development.

Powered by top-tier diodes with a 2.9 μmol/J efficacy, the SN630 outputs a solid 1830 μmol/s PPF, making it a powerful and energy-efficient choice for flowering rooms, tents, or vertical rack systems. Manual dimming is available via a built-in control interface with preset wattage levels ranging from 120W to 630W, or via smart control systems including 0-10V controllers, Bluetooth, and NCCS network integration.

This fixture is engineered with Nanolux’s classic foldable frame, reducing packaging size and easing transport and storage. With its IP65 rating, it’s fully sealed against dust and water, allowing it to thrive in high-humidity grow environments up to 95%. Safety is also a top priority, with built-in protections like random start, soft dimming, over-temp, over-voltage, and LED bar failure compensation, ensuring consistent light output and long-lasting performance.

Key Features of the Nanolux SN630 LED

• Programmable UV & IR Channels: Digital timers allow 1–12 hour scheduling of UV and IR independently for increased control over plant responses

• High-Efficiency Full Spectrum Output: 2.9 μmol/J delivers a powerful 1830 μmol/s PPF

• Smart Dimming Control: Choose from 8 wattage presets (120W to 630W) via onboard digital interface or integrate with external controllers

• Foldable Design: Compact shipping and storage; ideal for low-profile and space-limited setups

• Flexible Smart Control Options:

  • Compatible with Nanolux 0–10V Touch Controller

  • Works with NCCS Bluetooth and Network Controllers

  • Full control via Nanolux Master Pro system, manage On/Off, intensity, UV/IR timing

• Advanced Safety & Reliability:

  • Random Start, Soft Start, Soft Dimming

  • Over-temperature, Over-voltage, Short/Open Circuit Protection

  • LED Bar Compensation Technology: Other bars increase output if one fails

• Rugged IP65 Build: Protected from water, dust, and humidity, built for commercial conditions

Technical Specifications for the Nanolux SN630 LED

• Model: NXSN630

• Power Output: 630W max (selectable: 120W, 150W, 235W, 315W, 390W, 470W, 550W, 630W)

• PPF Output: 1830 μmol/s

• Efficiency: 2.9 μmol/J

• Spectrum Control: Digital UV & IR scheduling (1–12 hrs)

• Light Distribution: 120° beam angle

• Mounting Height: ≥80 cm (30″) above canopy

• Operating Temperature: 0°C – 35°C

• Operating Humidity: 0–95%

• Lifetime: >50,000 hours

• IP Rating: IP65 – waterproof and dustproof

• Warranty: 5 years standard manufacturer warranty

Best Suited For:

• Hobby and commercial indoor grows

• Growers seeking UV/IR customization for terpene and cannabinoid enhancement

• Vertical farms and rack systems with limited space

• Cultivators requiring precise digital control and system integration

• Environments where high humidity and dust resistance are crucial

The Nanolux SN630 LED brings together performance, control, and safety in one compact, powerful fixture. Whether you’re looking to upgrade your lighting system or design a precision-controlled grow from the ground up, the SN630 offers professional-level results in a versatile form factor.
